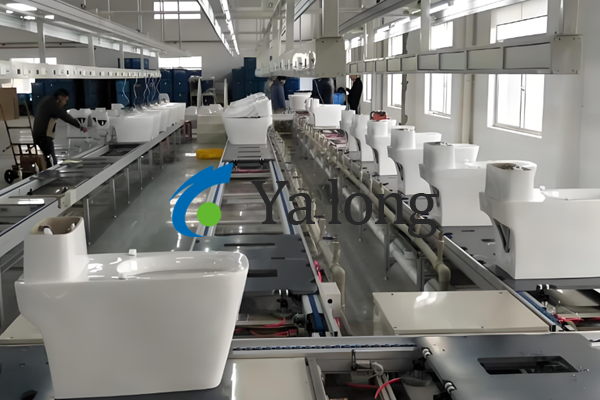

Special transportation line for toilets: heavy-duty anti-loss precision transfer equipment
1. The toilet conveying line is a professional conveying equipment customized for the production characteristics of ceramic toilets with “heavy-duty blank, fragile glaze, and multi-specification structure”. It is designed with “heavy-duty bearing, anti-scratch and damage, and precise adaptation” as the core. It adopts modular heavy-duty architecture, integrating high-intensity conveying units, anti-damage protection components and flexible control modules, providing the entire process from toilet blank transfer, glaze processing, sanitary ware assembly, tightness testing to finished product packaging. Provide stable and reliable logistics transportation support.
2. The core structure of the line body adopts a thick SUS304 stainless steel frame and is equipped with a wear-resistant rubber conveyor belt (with anti-slip patterns on the surface). The rated load load reaches 800kg, and the peak load can reach 1.2 tons. It can smoothly carry the ceramic toilet heavy-duty blank and finished products. The width of the conveying track can be adjusted steplessly between 600-1000 mm. Through adjustable limit baffles and flexible anti-collision tooling, it is compatible with different types such as wall-mounted, floor-mounted, and smart toilets, and adapts to the mainstream specifications of 300-400mm pit distance. and special customized models to meet the needs of mixed line production. The surface of the tooling plate is anti-scratch treated, and flexible anti-collision strips are installed on the edges to avoid bump and damage to the ceramic glaze throughout the process.
3. The transmission system is equipped with a high-power gear reduction motor and a frequency conversion speed mechanism, which supports segmented precise speed control: the blank transfer section is 18m/min to ensure flow efficiency, and the glaze processing and assembly inspection section is 6m/min to adapt to the precise process rhythm. Key transfer nodes are equipped with dual-cylinder-driven jacking positioning tables. Combined with laser positioning technology, the positioning accuracy reaches ±0.5mm, ensuring accurate docking of key processes such as water tank installation, flushing component assembly, and tightness testing, and reducing assembly deviations.
4. The wire body is equipped with modular quick-change components, which achieve rapid adjustment through a magnetic locking device. Switching between different model specifications can be completed within 20 minutes, meeting the needs of small batches and multiple batches orders. The entire line is equipped with anti-deviation baffles, infrared anti-collision sensors and emergency brake buttons. Heavy-duty sections are equipped with strengthened and reinforced design, which has strong structural stability. At the same time, the line body is adapted to the wet working conditions of glaze processing, the tooling plate has waterproof and anti-corrosion characteristics, and the glaze clean air curtain interface and the airtight testing station channel are reserved. The maintenance is convenient and the cycle is long. The average daily transfer capacity of a single line reaches 300-450 units, providing professional transportation guarantee for large-scale production of toilets.
